DIY Aviation Connector Assembly Hardware Kit

This DIY aviation connector assembly hardware kit is an all-in-one parts set for makers, electronics technicians, industrial maintenance staff and custom cable builders. It contains every mechanical and electrical component needed to assemble a complete GX16 circular aviation connector from scratch, eliminating the need to source individual parts separately. It is widely used for building custom coiled keyboard cables, repairing damaged industrial equipment connectors, making custom wiring harnesses for LED displays, automation sensors, CNC machines and hobbyist electronic projects.

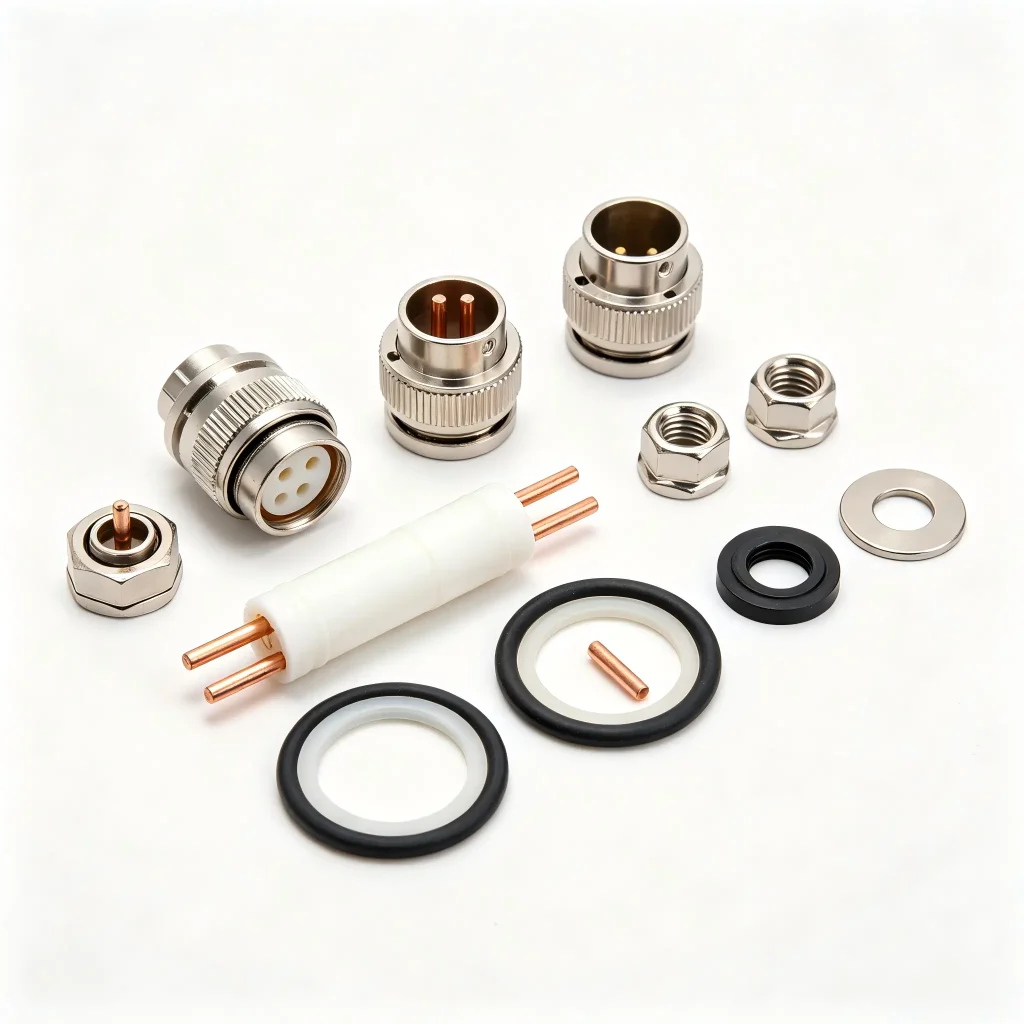

The kit is available in both male plug and female socket configurations, with pin counts ranging from 2 to 8 pins to match different power and signal wiring requirements. Each kit includes a zinc alloy nickel-plated outer shell, threaded coupling ring, bakelite insulator core, high-quality copper alloy contact pins, panel mounting locking nut (for socket version), rubber waterproof sealing ring and cable gland with strain relief. All parts follow standard GX16 dimensional specifications, ensuring full compatibility with off-the-shelf GX16 aviation connectors and panel mounts.

Assembly is straightforward and requires only basic soldering tools and a small wrench. Users simply solder their cable wires to the contact pins, insert the pins into the insulator core, assemble the shell components, then tighten the cable gland to secure the cable and form a sealed connection. The threaded locking design provides a vibration-resistant mechanical lock when mated, making it suitable for both static desktop wiring and moving industrial equipment.

When properly assembled and mated, the connector achieves IP55 dust and splash protection, suitable for indoor industrial environments, workshop projects and sheltered outdoor installations. The metal housing provides good structural strength and electromagnetic shielding, while the bakelite insulator offers reliable electrical insulation and heat resistance for low to medium voltage applications.

For bulk orders and custom projects, we support mixed pin counts, pre-loaded contact pins, custom packaging and bundled soldering accessories. The kit is also a popular companion product for custom mechanical keyboard cable builders, paired with braided cable, USB connectors and heat shrink tubing for complete DIY cable kits.

• All-in-one GX16 aviation connector parts kit for DIY assembly and repair
• Available in male plug / female socket versions, 2–8 pin options
• Includes metal shell, insulator core, copper pins, seal, cable gland and locking nut
• Standard GX16 dimensions, fully compatible with off-the-shelf aviation connectors
• Simple assembly with basic soldering tools, no special equipment required
• Threaded locking design, vibration-resistant when mated
• IP55 dustproof and splash-proof when properly assembled
• Ideal for custom keyboard cables, industrial repair, LED wiring and maker projects
• Custom pin counts, bundled accessories and packaging available for bulk orders
